Pyroguard 23mm
Pyroguard · evidence reference CF437 (Warringtonfire Certifire, stated validity to 19 Feb 2031)
Within stated validity to 19 Feb 2031; issuer status still requires checking
This glass can achieve different fire ratings depending on how it is used — internal or external, door or screen, single or double-glazed unit, and the framing system. Each record below must be checked against the current certificate, test regime and complete framing, seals, fixings, installation and exposure. Only explicitly reviewed mappings carry review provenance; other extracted data remains unverified.
Request a quote for this glass
Give us your size and contact details and verified local suppliers will quote — no account needed, just an email to confirm.
Certified options for this glass
Check recorded size bounds and outstanding evidence
A size fit is only one part of qualification. The complete framing, seals, fixings, exposure and current certificate must be checked. No rotation or interpolation between tabulated pairs is assumed.
System verification required
Test regime / source mapping unverified · numeric integrity/insulation minutes do not automatically establish EN 13501 E/EW/EI.
Within stated validity to 19 Feb 2031; issuer status still requires checking
Screen
Steel
IGU
Internal or External
6.51 m² max areamaximum usable stock sheet size of this product is 2075mm x 3050mm
Confirm the cited system's width, height, area, orientation and any dimension graph; do not assume rotation or interpolation.

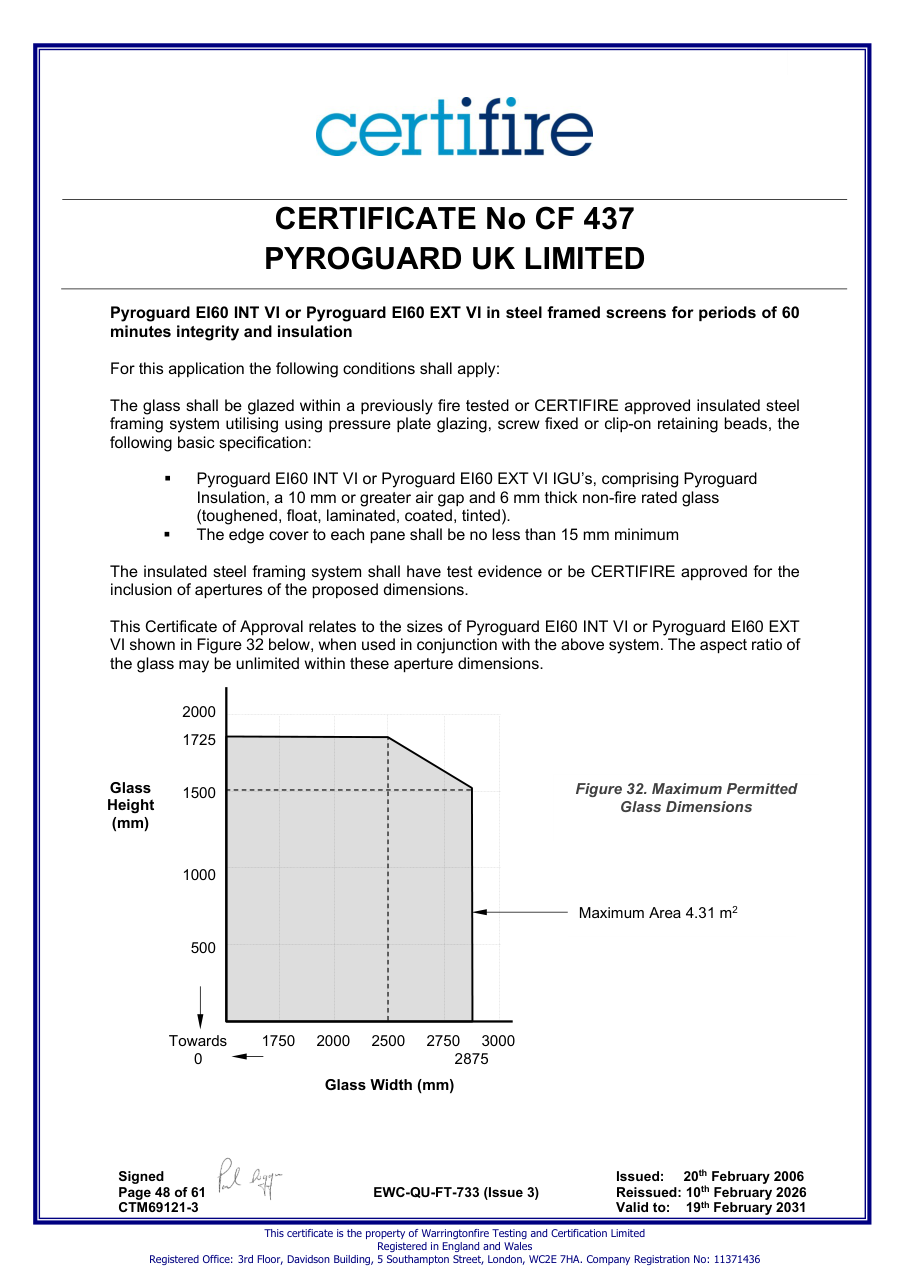

- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI in steel framed screens for periods of 60 minutes integrity and insulation framing system using pressure plate glazing, screw fixed or clip-on retaining beads, utilising the following basic specification: Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI IGU, comprising Pyroguard EI60 INT or Pyroguard EI60 EXT an 12 mm air gap and 8.8 mm laminated/annealed or float glass The edge cover to each pane shall be no less than 15 mm minimum
- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI in steel framed screens for periods of 60 minutes integrity and insulation framing system utilising using pressure plate glazing, screw fixed or clip-on retaining beads, the following basic specification: Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI IGU’s, comprising Pyroguard Insulation, a 10 mm or greater air gap and 6 mm thick non-fire rated glass (toughened, float, laminated, coated, tinted). The edge cover to each pane shall be no less than 15 mm minimum

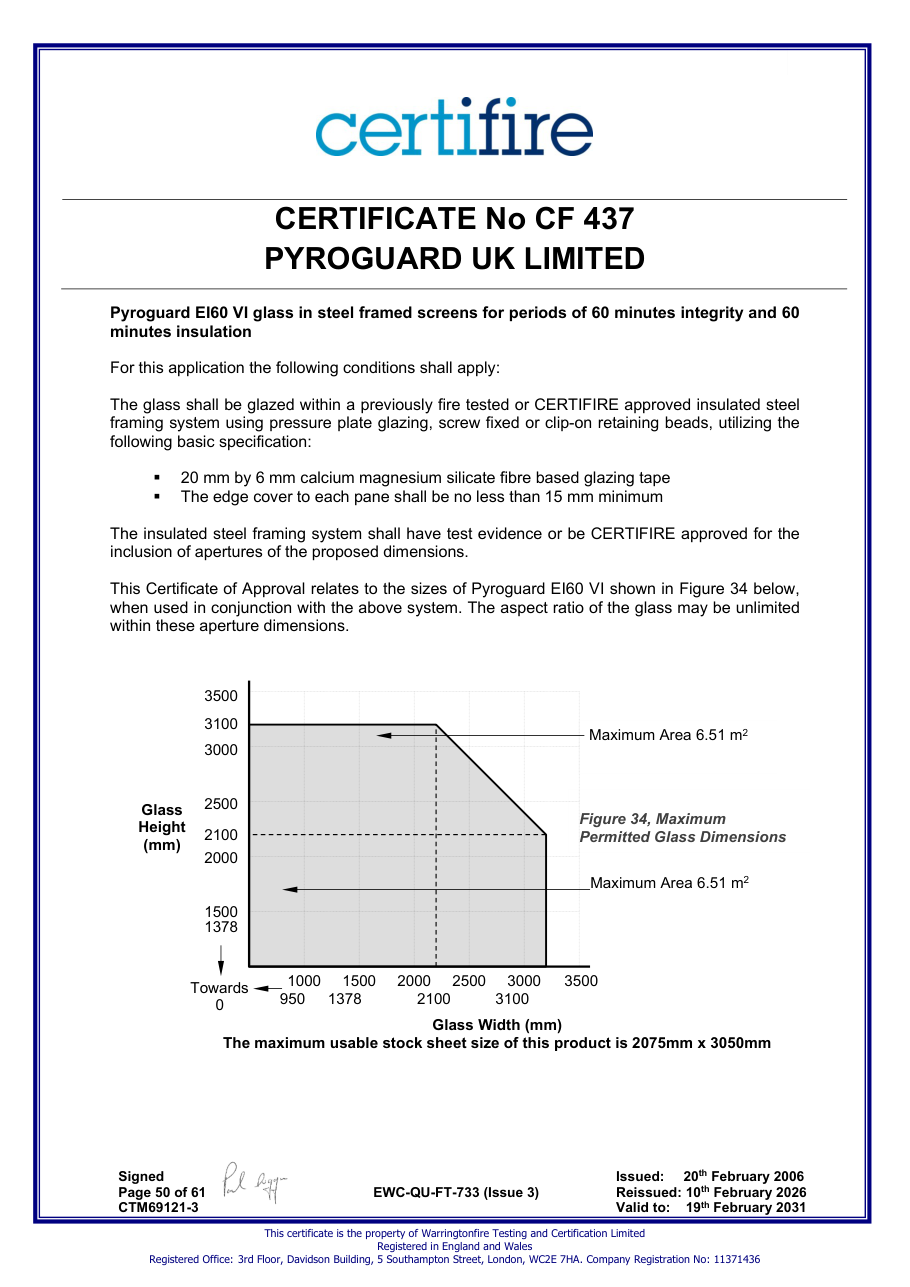

- Pyroguard EI60 VI glass in steel framed screens for periods of 60 minutes integrity and 60 minutes insulation framing system using pressure plate glazing, screw fixed or clip-on retaining beads, utilizing the following basic specification: 20 mm by 6 mm calcium magnesium silicate fibre based glazing tape The edge cover to each pane shall be no less than 15 mm minimum
System verification required
Test regime / source mapping unverified · numeric integrity/insulation minutes do not automatically establish EN 13501 E/EW/EI.
Within stated validity to 19 Feb 2031; issuer status still requires checking
Screen
Timber
IGU
Internal or External
4.37 m² max area
Confirm the cited system's width, height, area, orientation and any dimension graph; do not assume rotation or interpolation.

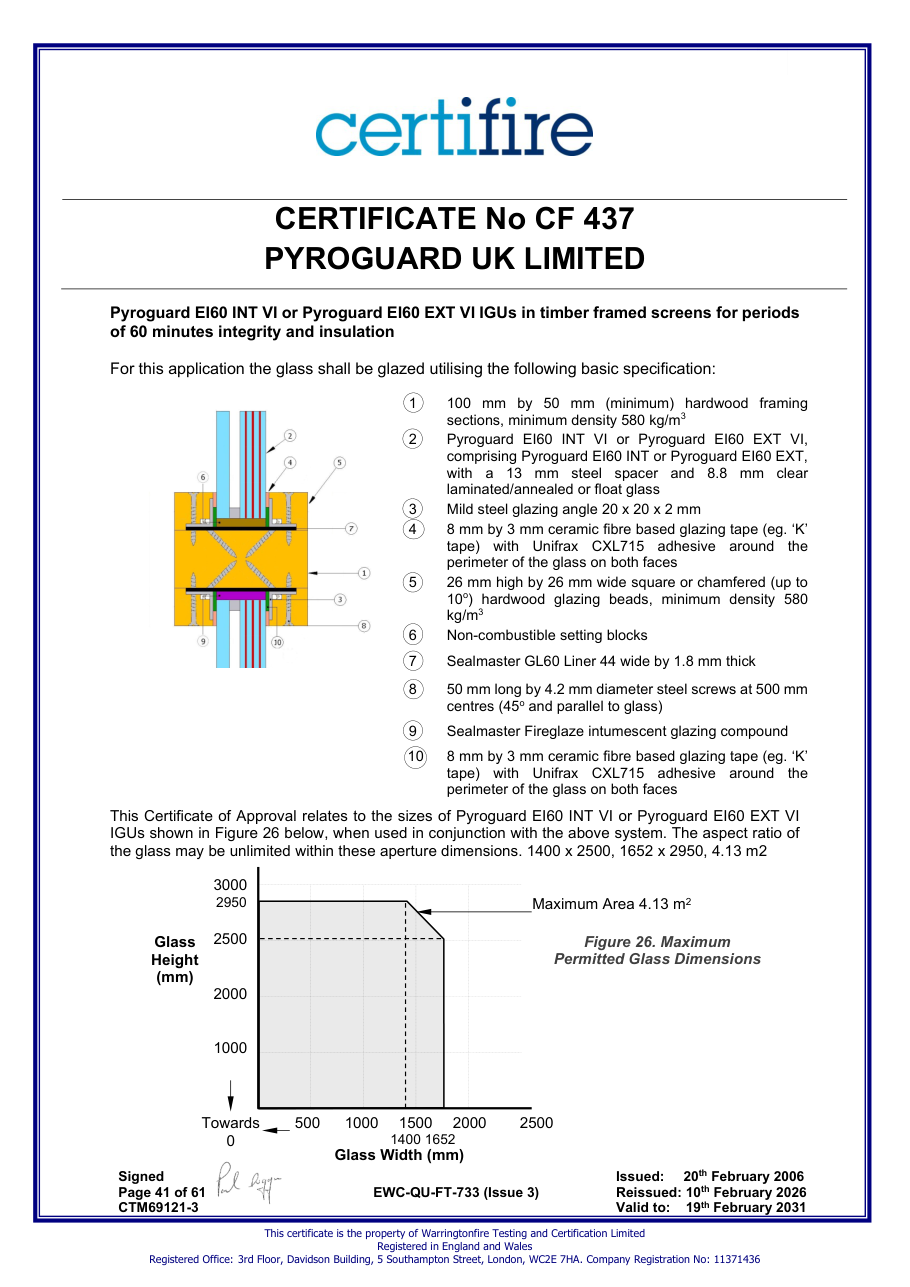

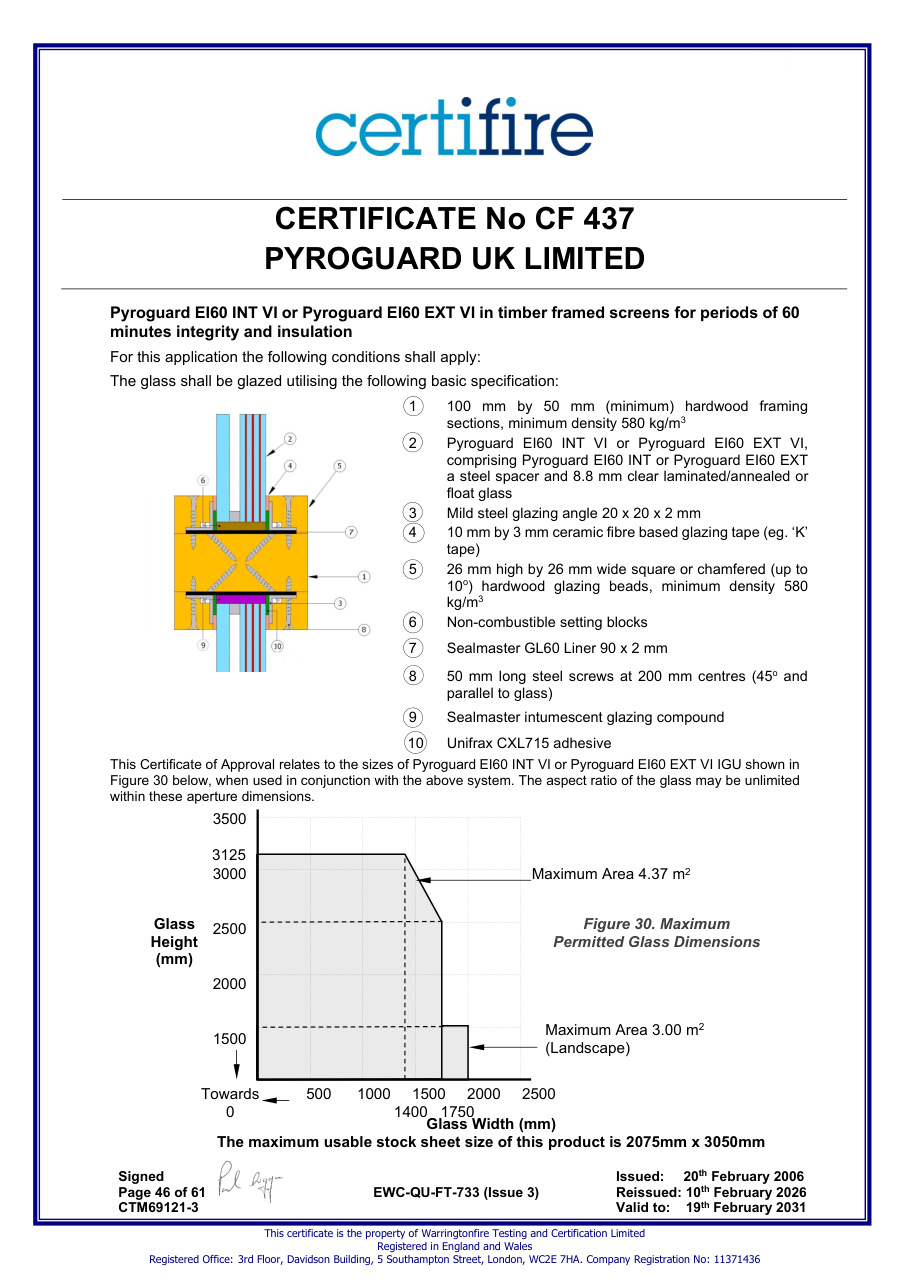

- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI IGUs in timber framed screens for periods of 60 minutes integrity and insulation
- 100 mm by 50 mm (minimum) hardwood framing sections, minimum density 580 kg/m3
- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI, comprising Pyroguard EI60 INT or Pyroguard EI60 EXT, with a 13 mm steel spacer and 8.8 mm clear laminated/annealed or float glass
- Mild steel glazing angle 20 x 20 x 2 mm
- 8 mm by 3 mm ceramic fibre based glazing tape (eg. ‘K’ tape) with Unifrax CXL715 adhesive around the perimeter of the glass on both faces
- 26 mm high by 26 mm wide square or chamfered (up to 10o) hardwood glazing beads, minimum density 580 kg/m3
- Non-combustible setting blocks
- Sealmaster GL60 Liner 44 wide by 1.8 mm thick
- 50 mm long by 4.2 mm diameter steel screws at 500 mm centres (45o and parallel to glass)
- Sealmaster Fireglaze intumescent glazing compound
- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI in timber framed screens for periods of 60 minutes integrity and insulation
- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI, comprising Pyroguard EI60 INT or Pyroguard EI60 EXT a steel spacer and 8.8 mm clear laminated/annealed or float glass
- 10 mm by 3 mm ceramic fibre based glazing tape (eg. ‘K’ tape)
- Sealmaster GL60 Liner 90 x 2 mm
System verification required
Test regime / source mapping unverified · numeric integrity/insulation minutes do not automatically establish EN 13501 E/EW/EI.
Within stated validity to 19 Feb 2031; issuer status still requires checking
Door
Steel
Single
Internal or External
3.69 m² max area
Confirm the cited system's width, height, area, orientation and any dimension graph; do not assume rotation or interpolation.

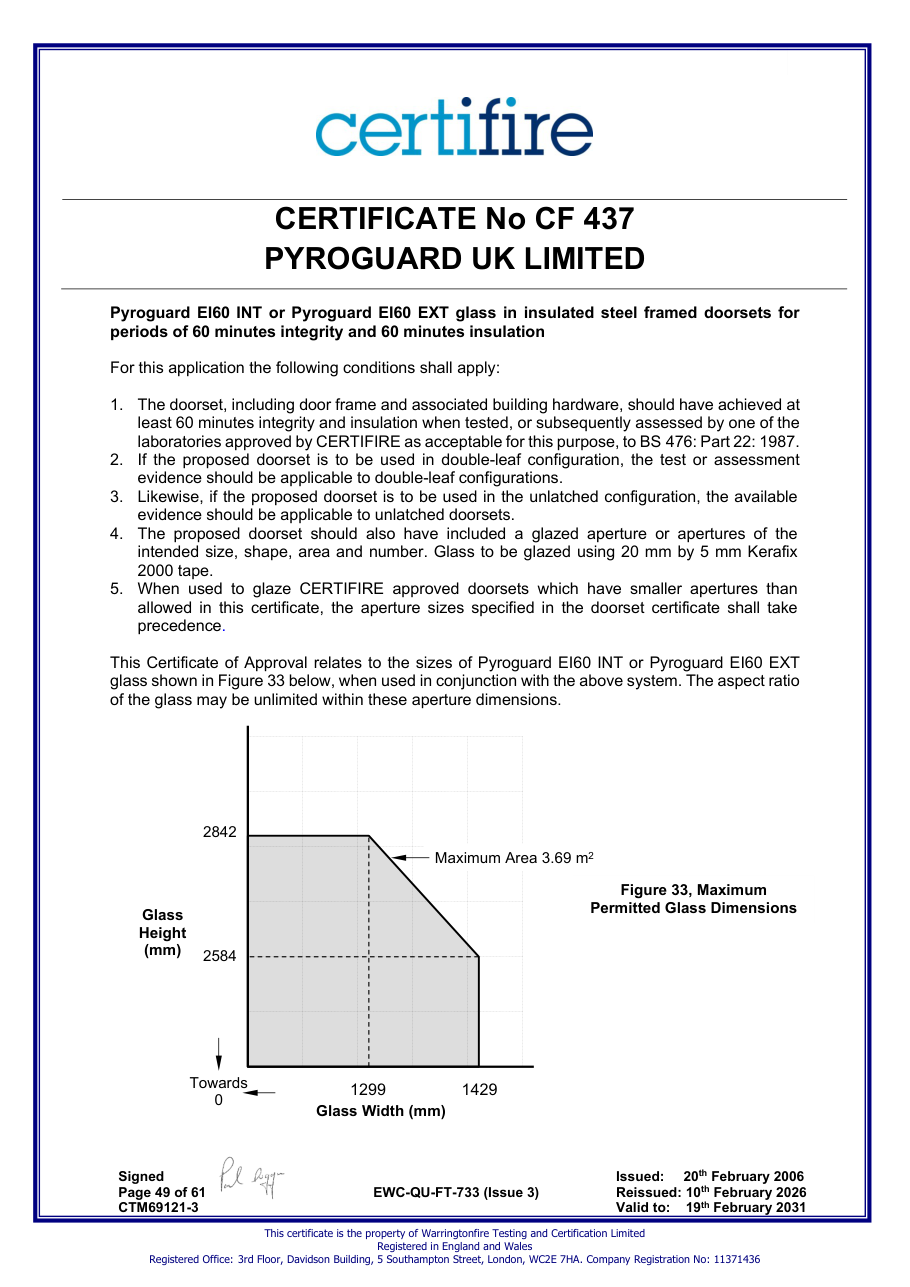

- Pyroguard EI60 INT or Pyroguard EI60 EXT glass in insulated steel framed doorsets for periods of 60 minutes integrity and 60 minutes insulation
- least 60 minutes integrity and insulation when tested, or subsequently assessed by one of the laboratories approved by CERTIFIRE as acceptable for this purpose, to BS 476: Part 22: 1987.
- evidence should be applicable to double-leaf configurations.
- evidence should be applicable to unlatched doorsets.
- intended size, shape, area and number. Glass to be glazed using 20 mm by 5 mm Kerafix 2000 tape.
- allowed in this certificate, the aperture sizes specified in the doorset certificate shall take precedence.

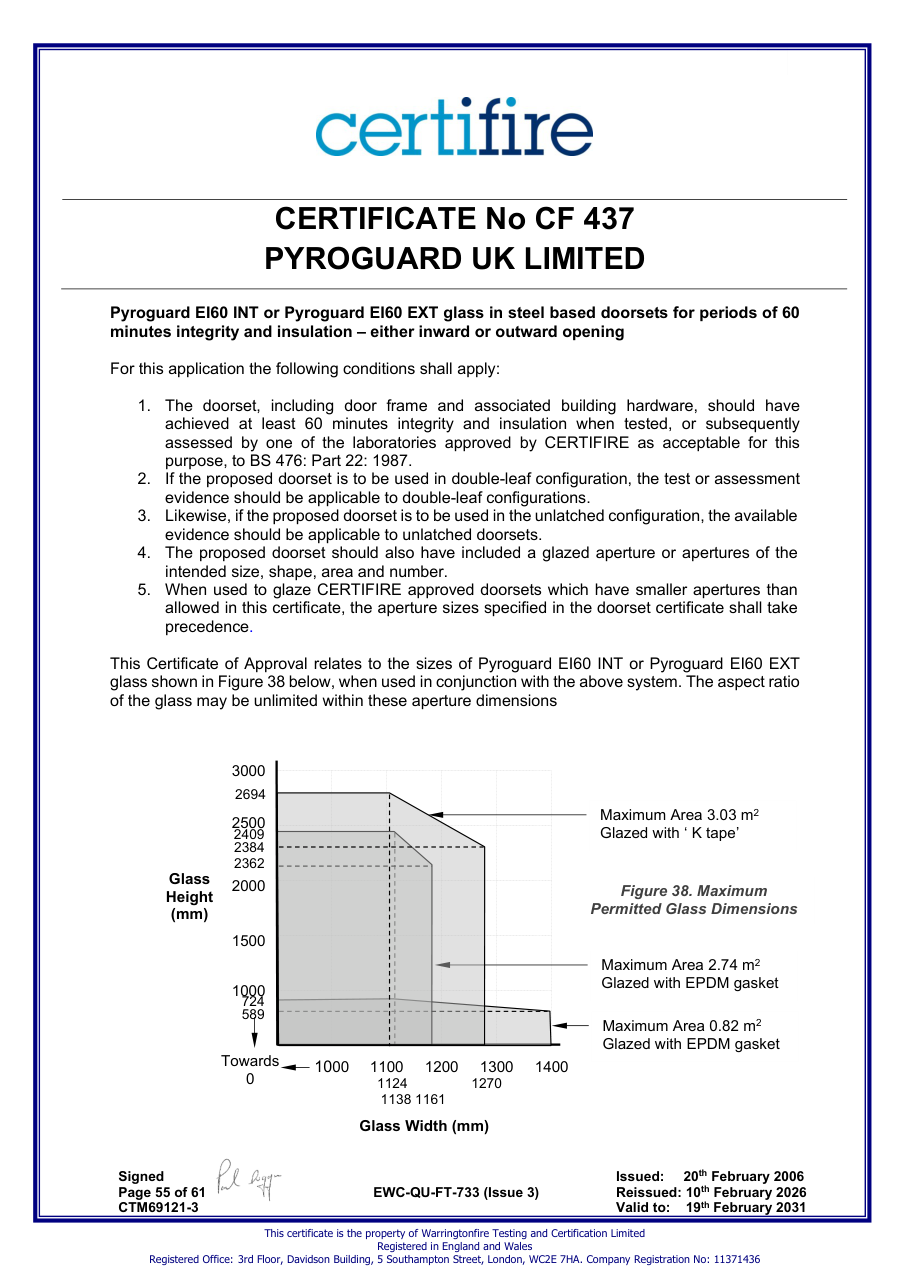

- Pyroguard EI60 INT or Pyroguard EI60 EXT glass in steel based doorsets for periods of 60 minutes integrity and insulation – either inward or outward opening
- achieved at least 60 minutes integrity and insulation when tested, or subsequently assessed by one of the laboratories approved by CERTIFIRE as acceptable for this purpose, to BS 476: Part 22: 1987.
- intended size, shape, area and number.

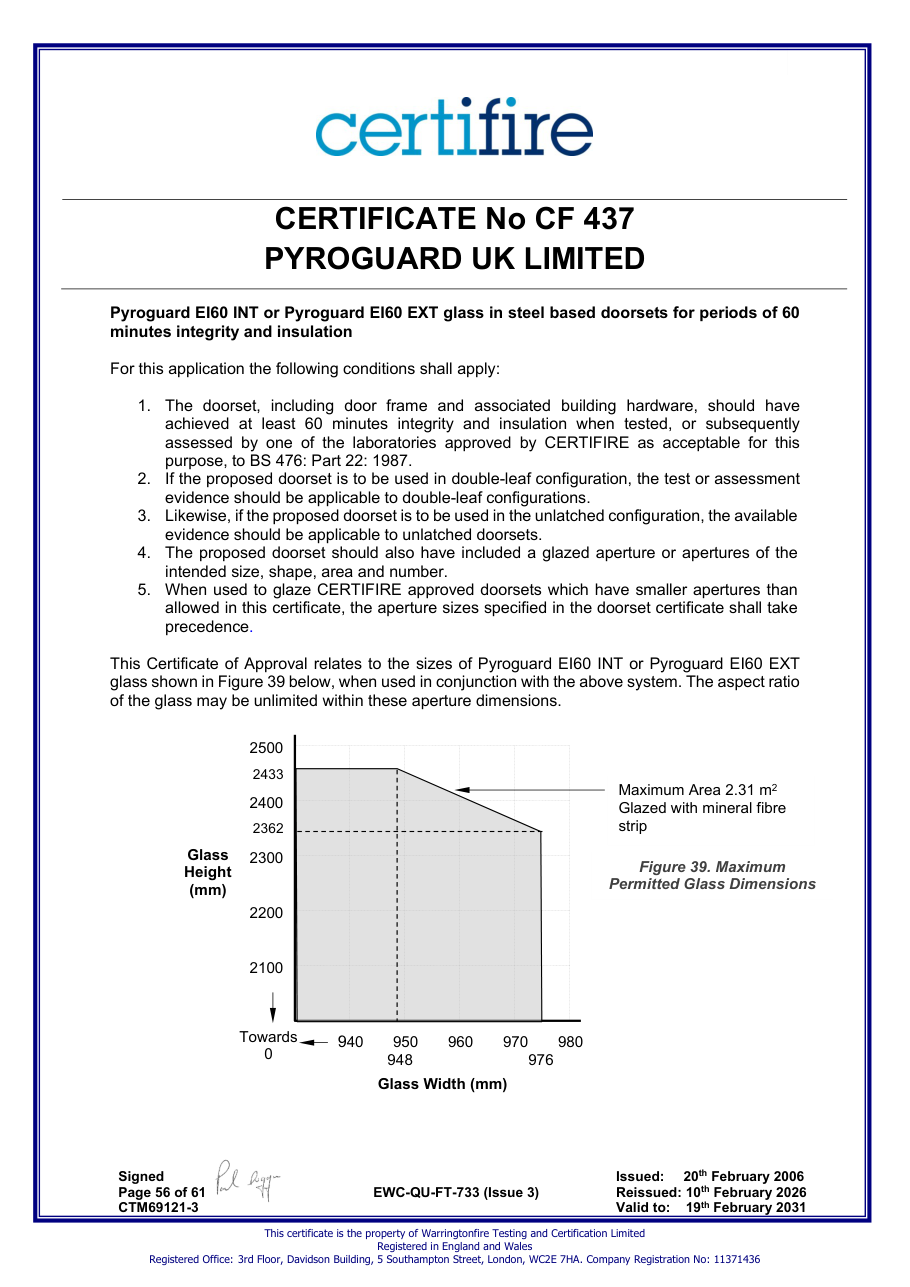

- Pyroguard EI60 INT or Pyroguard EI60 EXT glass in steel based doorsets for periods of 60 minutes integrity and insulation
System verification required
Test regime / source mapping unverified · numeric integrity/insulation minutes do not automatically establish EN 13501 E/EW/EI.
Within stated validity to 19 Feb 2031; issuer status still requires checking
Screen
Steel
Single
Internal or External
4.69 m² max area
Confirm the cited system's width, height, area, orientation and any dimension graph; do not assume rotation or interpolation.

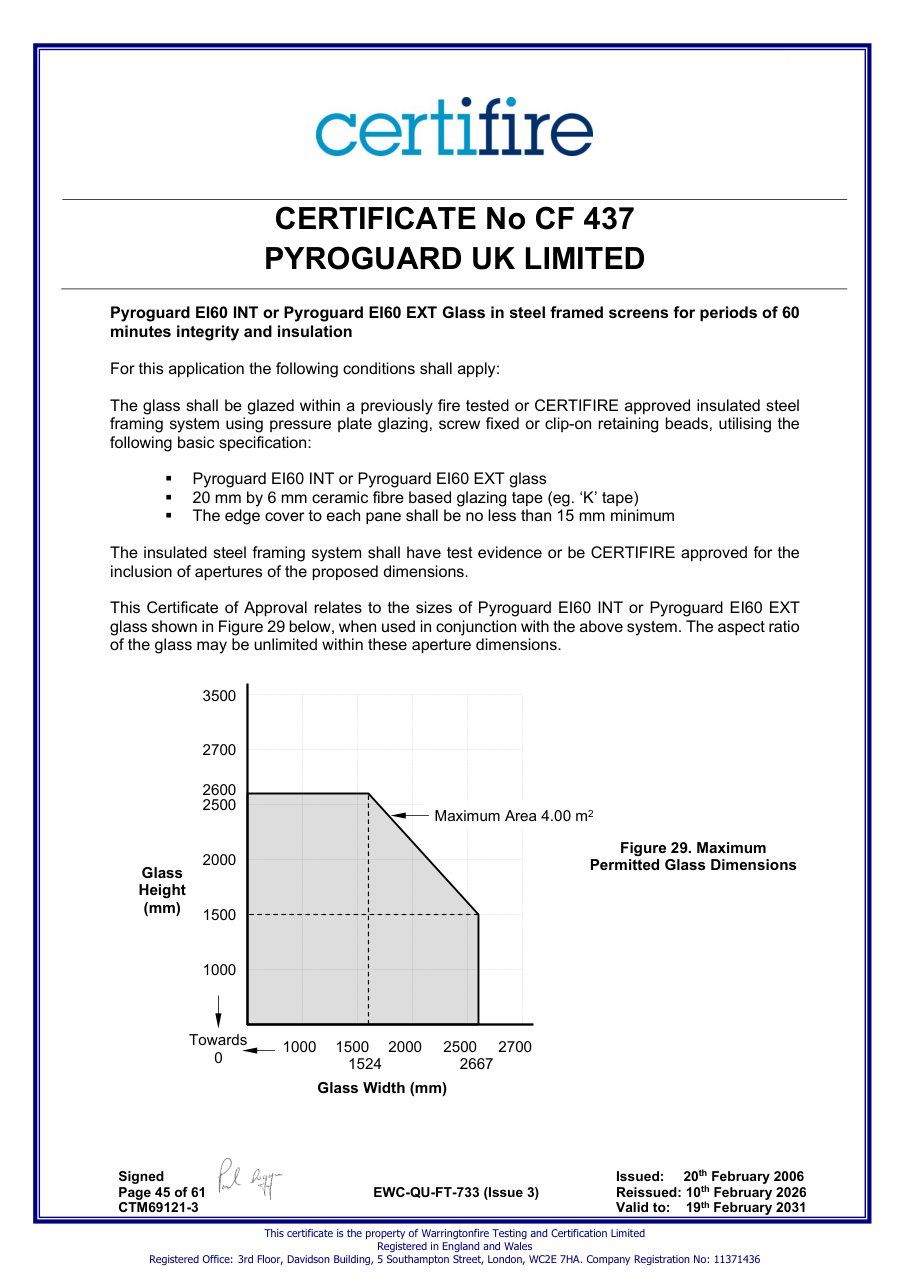

- Pyroguard EI60 INT or Pyroguard EI60 EXT Glass in steel framed screens for periods of 60 minutes integrity and insulation framing system using pressure plate glazing, screw fixed or clip-on retaining beads, utilising the following basic specification: Pyroguard EI60 INT or Pyroguard EI60 EXT glass 20 mm by 6 mm ceramic fibre based glazing tape (eg. ‘K’ tape) The edge cover to each pane shall be no less than 15 mm minimum

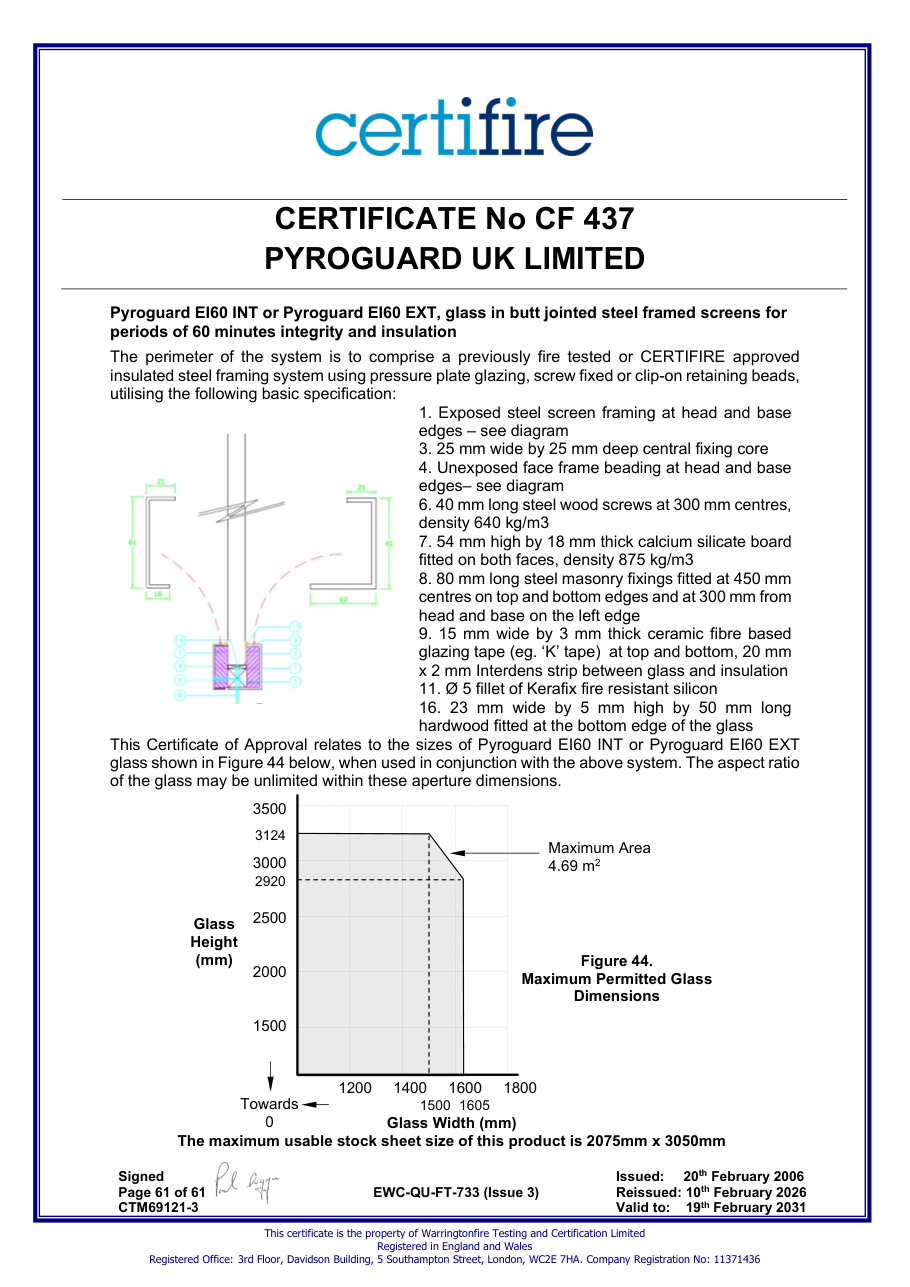

- Pyroguard EI60 INT or Pyroguard EI60 EXT, glass in butt jointed steel framed screens for periods of 60 minutes integrity and insulation The perimeter of the system is to comprise a previously fire tested or CERTIFIRE approved insulated steel framing system using pressure plate glazing, screw fixed or clip-on retaining beads,
- Exposed steel screen framing at head and base edges – see diagram
- 25 mm wide by 25 mm deep central fixing core
- Unexposed face frame beading at head and base edges– see diagram
- 40 mm long steel wood screws at 300 mm centres, density 640 kg/m3
- 54 mm high by 18 mm thick calcium silicate board fitted on both faces, density 875 kg/m3
- 80 mm long steel masonry fixings fitted at 450 mm centres on top and bottom edges and at 300 mm from head and base on the left edge
- 15 mm wide by 3 mm thick ceramic fibre based glazing tape (eg. ‘K’ tape) at top and bottom, 20 mm x 2 mm Interdens strip between glass and insulation
- Ø 5 fillet of Kerafix fire resistant silicon
- 23 mm wide by 5 mm high by 50 mm long hardwood fitted at the bottom edge of the glass
System verification required
Test regime / source mapping unverified · numeric integrity/insulation minutes do not automatically establish EN 13501 E/EW/EI.
Within stated validity to 19 Feb 2031; issuer status still requires checking
Door
Timber
Single
Internal or External
0.59 m² max area
Confirm the cited system's width, height, area, orientation and any dimension graph; do not assume rotation or interpolation.

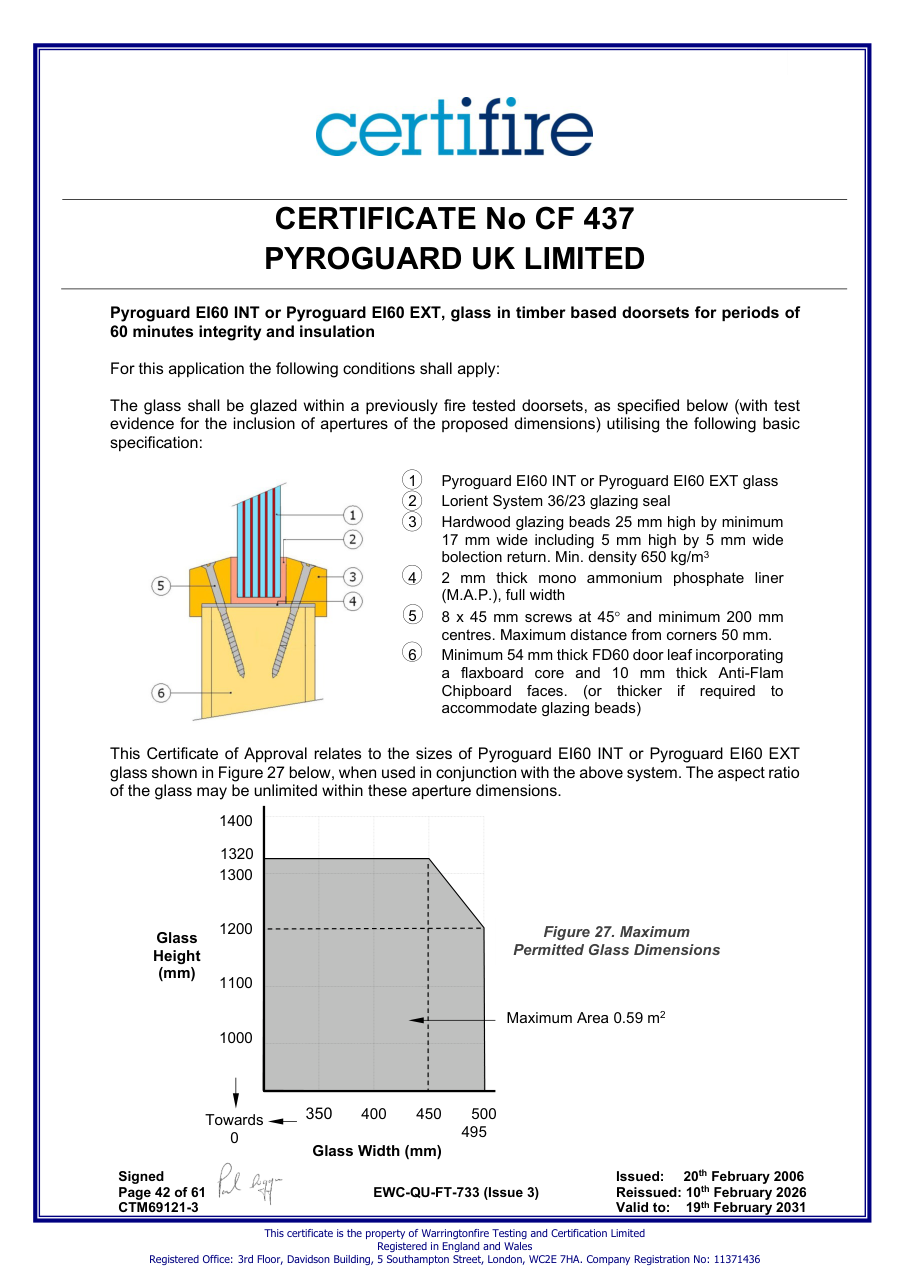

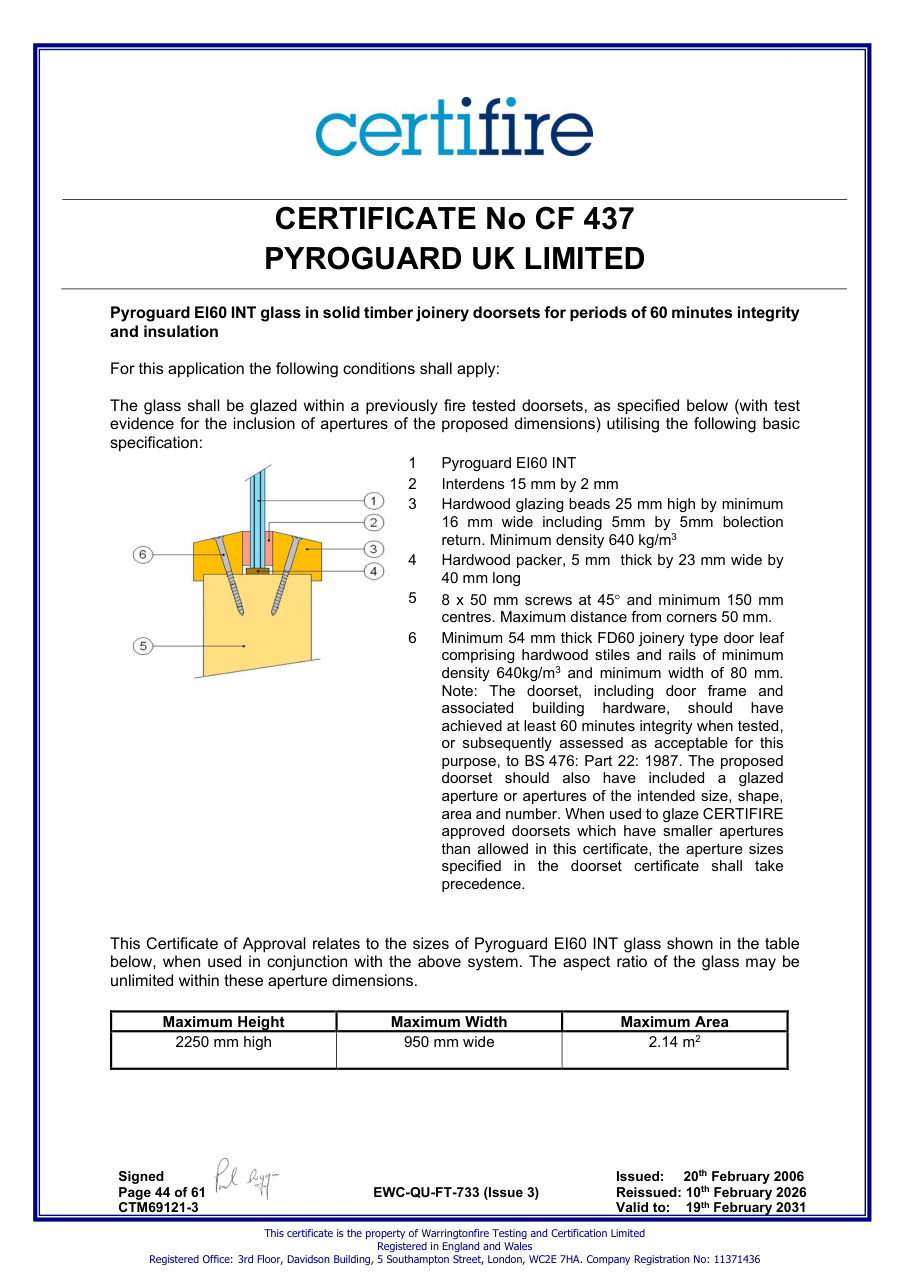

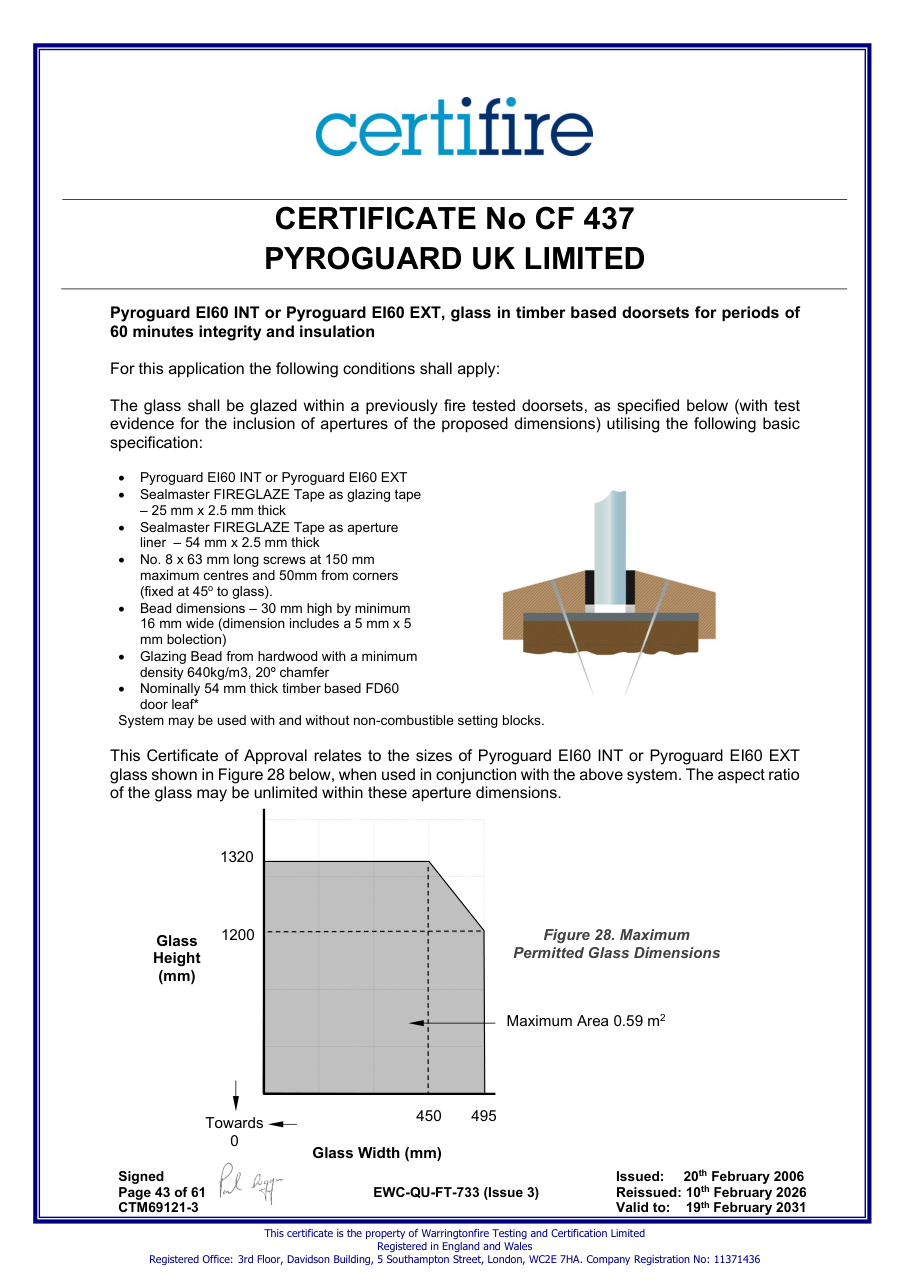

- Pyroguard EI60 INT or Pyroguard EI60 EXT, glass in timber based doorsets for periods of 60 minutes integrity and insulation evidence for the
- Pyroguard EI60 INT or Pyroguard EI60 EXT glass
- Lorient System 36/23 glazing seal
- Hardwood glazing beads 25 mm high by minimum 17 mm wide including 5 mm high by 5 mm wide bolection return. Min. density 650 kg/m3
- 2 mm thick mono ammonium phosphate liner (M.A.P.), full width
- 8 x 45 mm screws at 45° and minimum 200 mm centres. Maximum distance from corners 50 mm.
- Minimum 54 mm thick FD60 door leaf incorporating a flaxboard core and 10 mm thick Anti-Flam Chipboard faces. (or thicker if required to accommodate glazing beads)
- Pyroguard EI60 INT or Pyroguard EI60 EXT
- Sealmaster FIREGLAZE Tape as glazing tape – 25 mm x 2.5 mm thick
- Sealmaster FIREGLAZE Tape as aperture liner – 54 mm x 2.5 mm thick
- No. 8 x 63 mm long screws at 150 mm maximum centres and 50mm from corners (fixed at 45o to glass).
- Bead dimensions – 30 mm high by minimum 16 mm wide (dimension includes a 5 mm x 5 mm bolection)
- Glazing Bead from hardwood with a minimum density 640kg/m3, 20º chamfer
- Nominally 54 mm thick timber based FD60 door leaf* System may be used with and without non-combustible setting blocks.
System verification required
Test regime / source mapping unverified · numeric integrity/insulation minutes do not automatically establish EN 13501 E/EW/EI.
Within stated validity to 19 Feb 2031; issuer status still requires checking
Screen
Timber
Single
Internal or External
4.7 m² max area
Confirm the cited system's width, height, area, orientation and any dimension graph; do not assume rotation or interpolation.

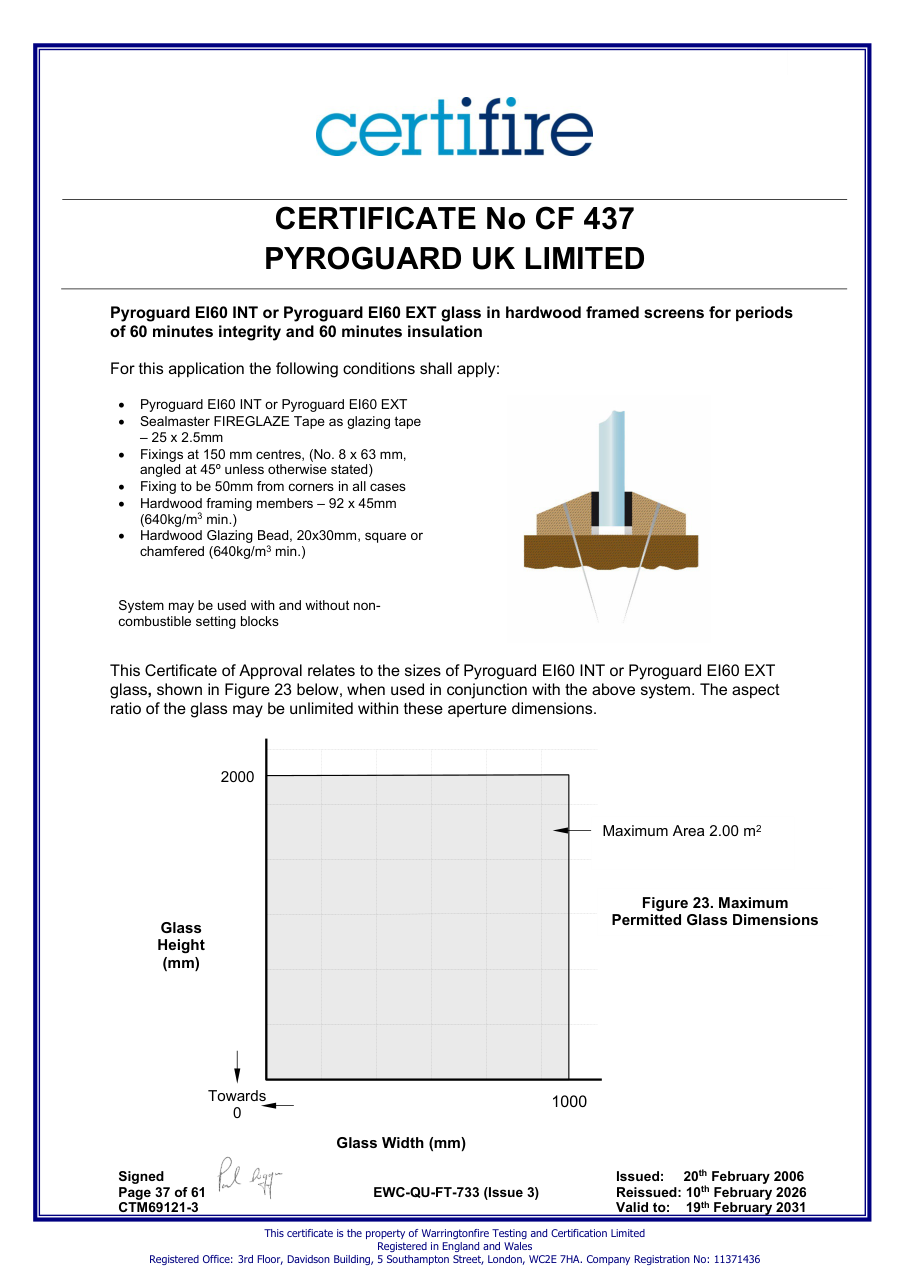

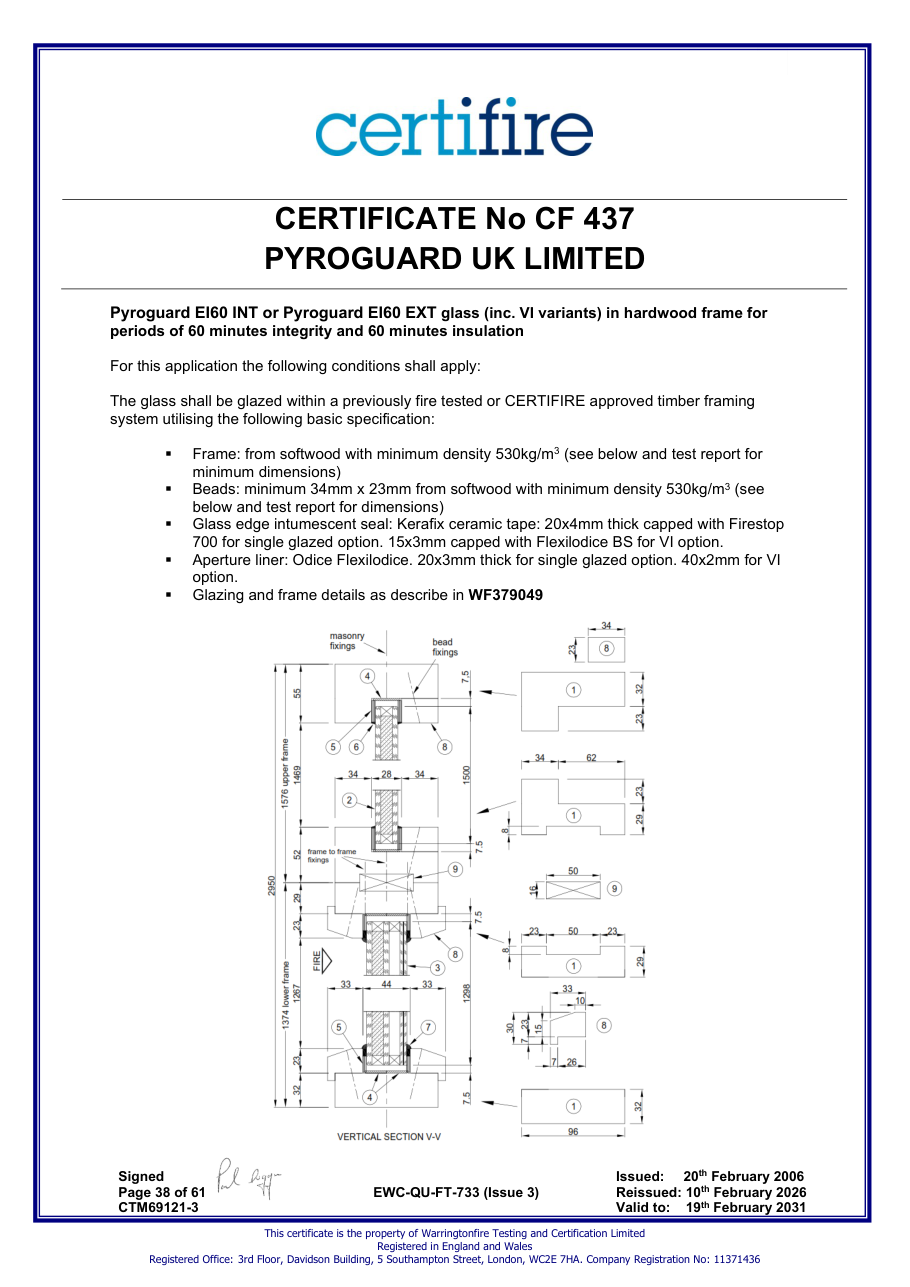

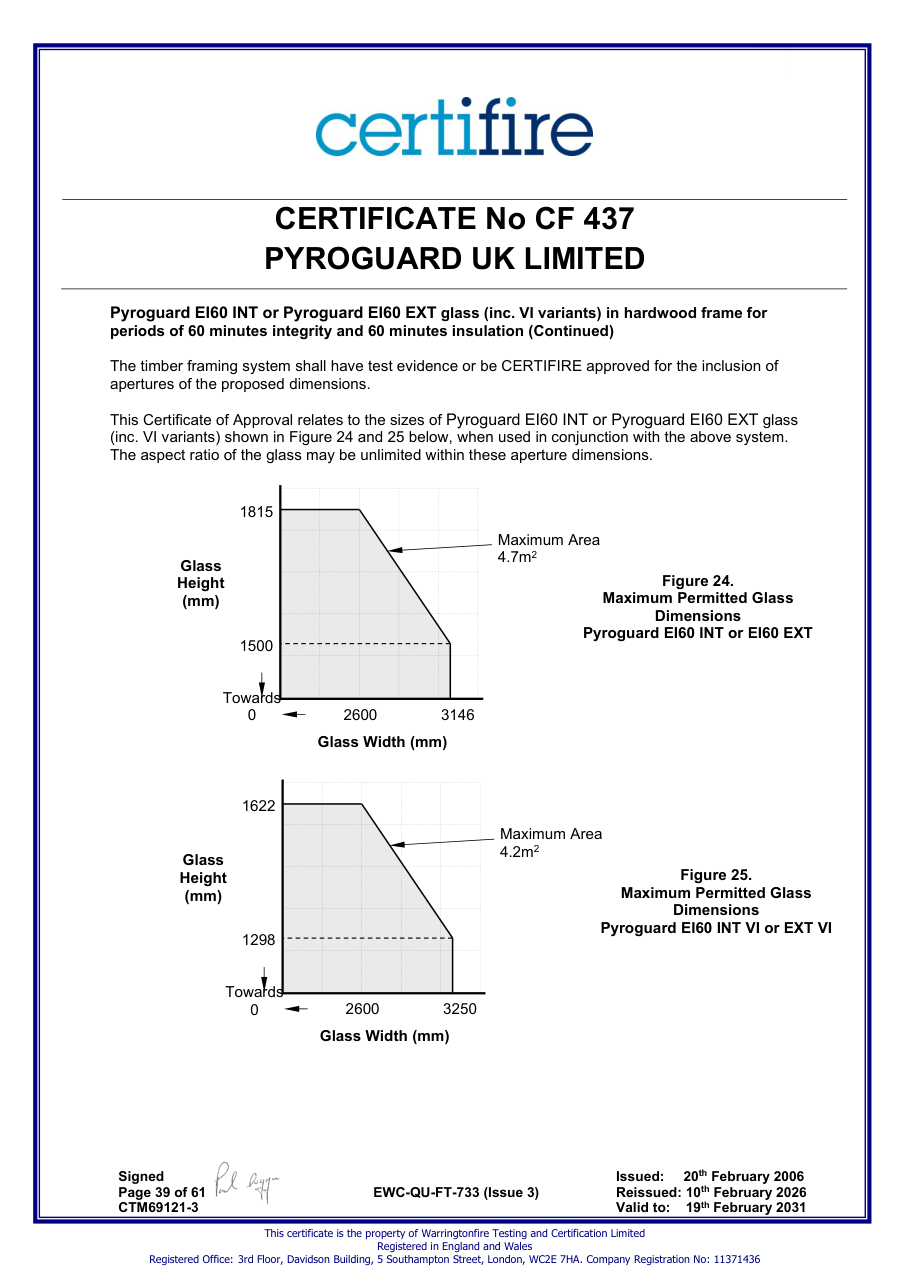

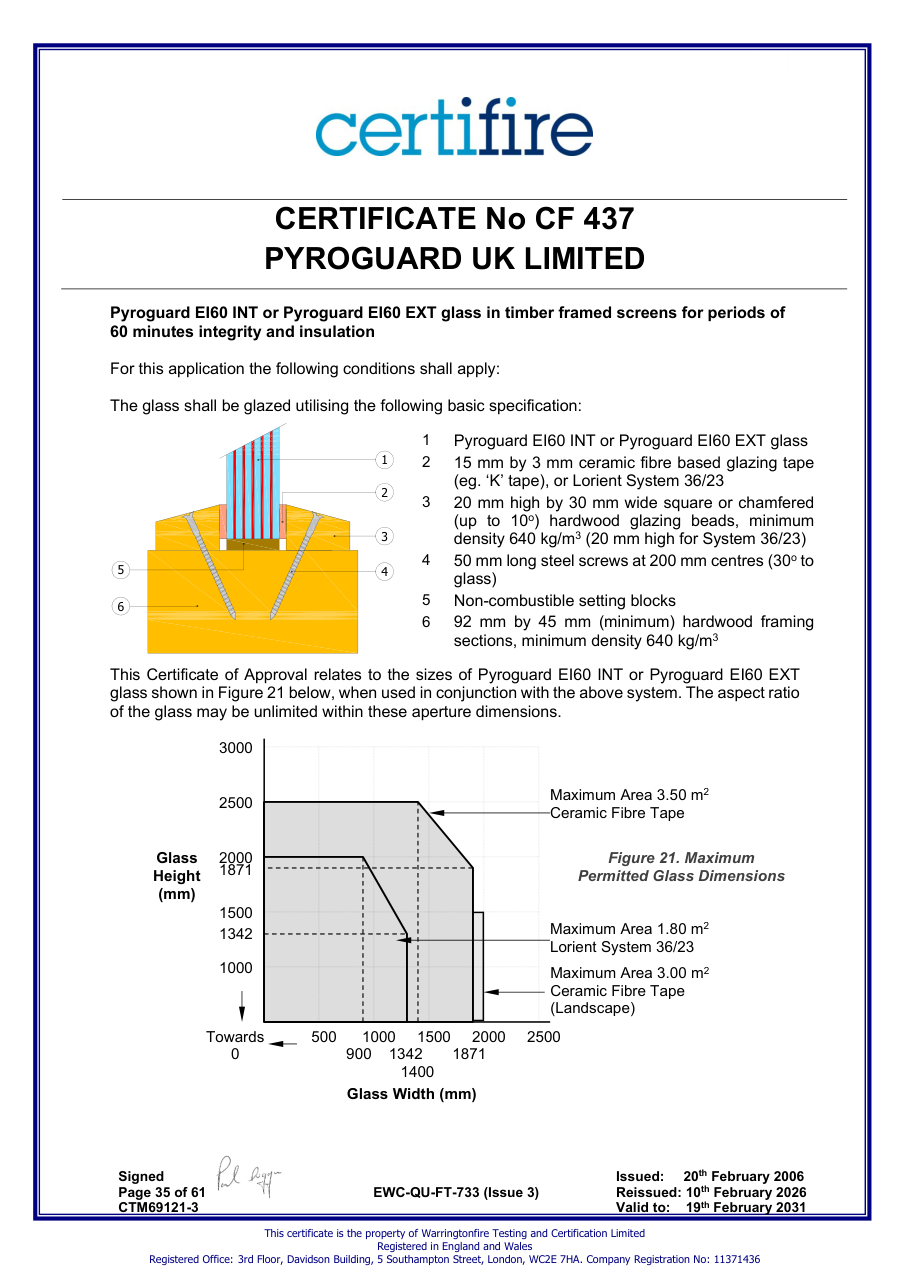

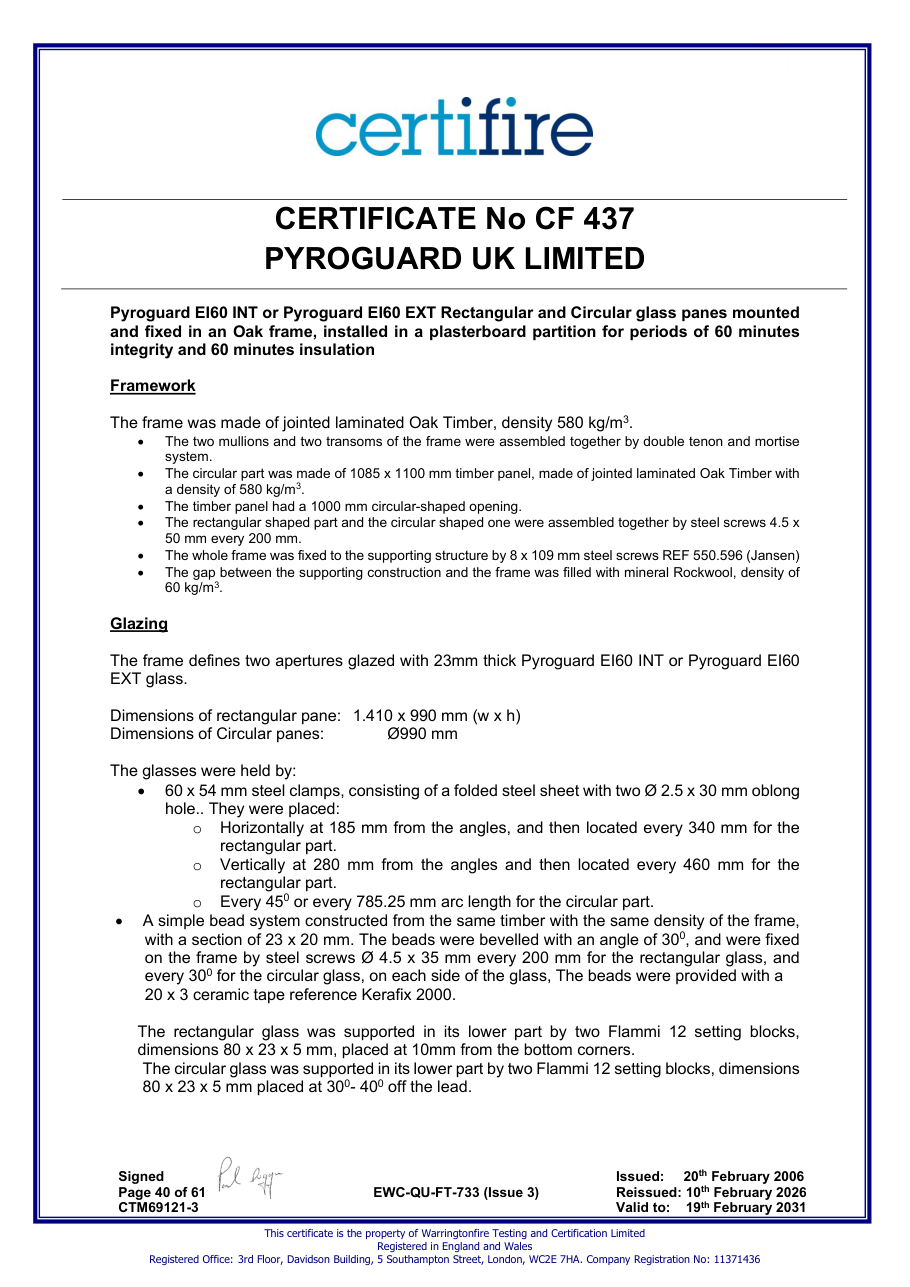

- Pyroguard EI60 INT or Pyroguard EI60 EXT glass in timber framed screens for periods of 60 minutes integrity and insulation
- Pyroguard EI60 INT or Pyroguard EI60 EXT glass
- 15 mm by 3 mm ceramic fibre based glazing tape (eg. ‘K’ tape), or Lorient System 36/23
- 20 mm high by 30 mm wide square or chamfered (up to 10o) hardwood glazing beads, minimum density 640 kg/m3 (20 mm high for System 36/23)
- 50 mm long steel screws at 200 mm centres (30o to glass)
- Non-combustible setting blocks
- 92 mm by 45 mm (minimum) hardwood framing sections, minimum density 640 kg/m3

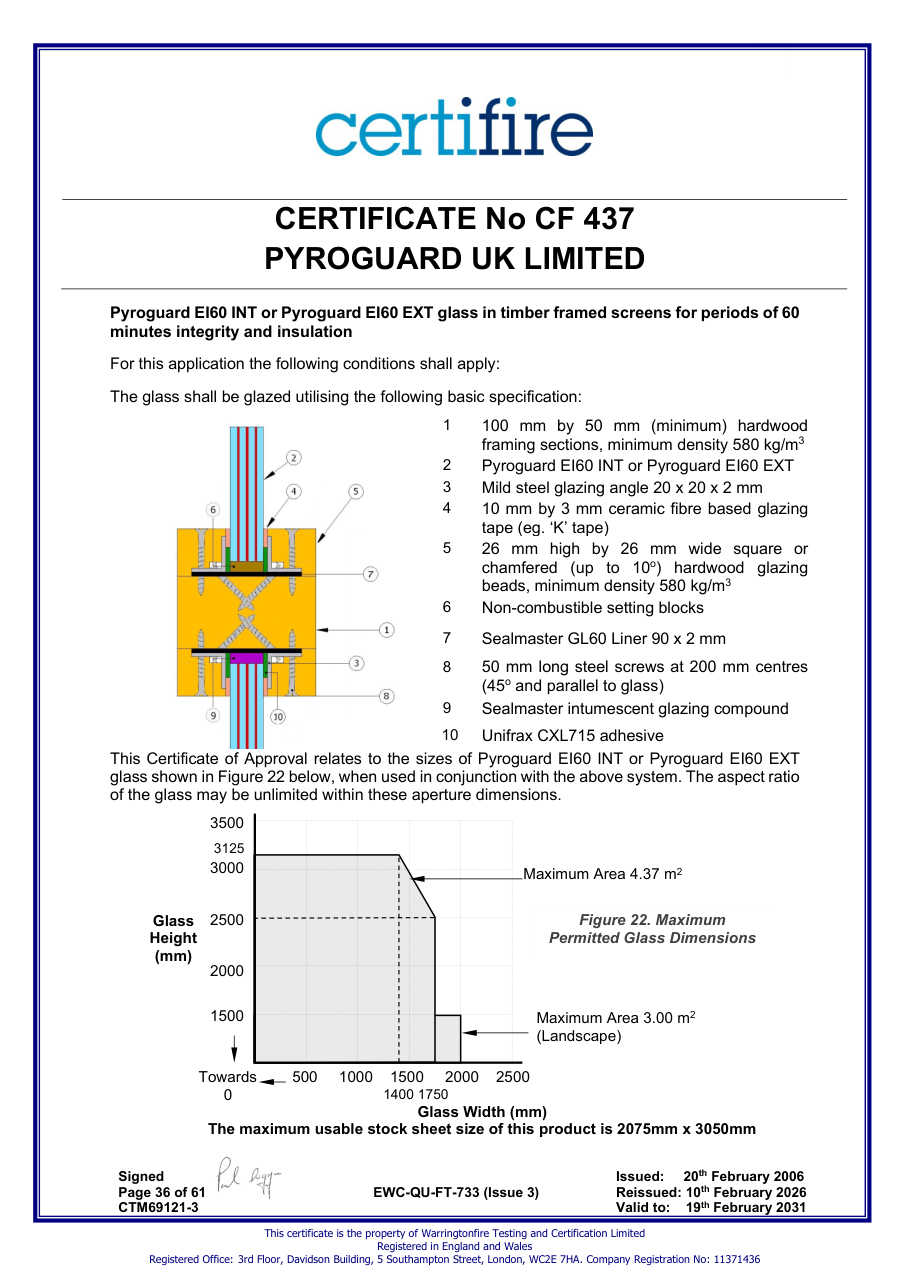

- 100 mm by 50 mm (minimum) hardwood framing sections, minimum density 580 kg/m3
- Pyroguard EI60 INT or Pyroguard EI60 EXT
- Mild steel glazing angle 20 x 20 x 2 mm
- 10 mm by 3 mm ceramic fibre based glazing tape (eg. ‘K’ tape)
- 26 mm high by 26 mm wide square or chamfered (up to 10o) hardwood glazing beads, minimum density 580 kg/m3
- Sealmaster GL60 Liner 90 x 2 mm
- 50 mm long steel screws at 200 mm centres (45o and parallel to glass)
Understanding the grades
Integrity for the classified duration. It does not establish radiation control or insulation.
The complete system and classification report determine E performance.
Integrity plus a radiation limit for the classified duration. EW is distinct from E and from EI.
Check radiation performance in the system classification report.
Integrity plus insulation for the classified duration. A BS 476 integrity/insulation pair alone is not an EN 13501 EI classification.
Specify class and minutes from the project fire strategy.
Manufacturer location/exposure terminology, separate from fire-resistance class. Confirm the specific glass, system and installation conditions.
Internal/external suitability cannot be inferred from the letters E, EW or EI.
