Wired glass with its purpose confirmed

Wired glass, cast wired glazing and heritage wired-glass replacement

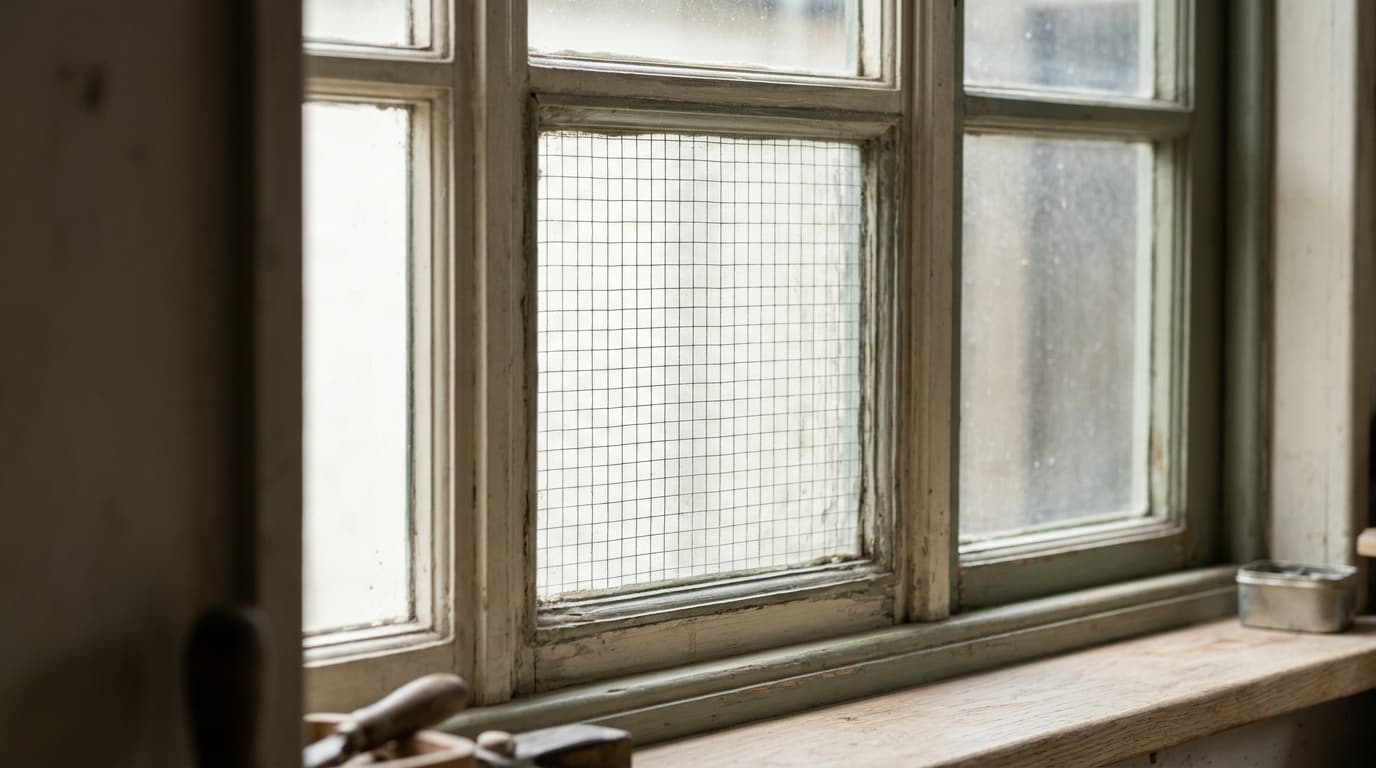

Wired glass has a visible wire pattern within the glass and is often requested to match an existing appearance. Clear polished wired and more obscured wired designs can produce different views. Identify the existing pattern, thickness and installation location when making an enquiry.

The wire does not automatically make a panel impact safety glass or establish a fire rating. Decorative texture wired glass and specifically rated fire-resistant products must be treated separately. A visual match is not evidence that the replacement meets the same performance requirement.

Doors, low-level glazing and fire-resisting openings need a project-specific review. Record the required fire and impact performance separately, and supply the frame and system information where relevant. Ask for current evidence for the exact replacement proposed.

Wired glass with its purpose confirmed for your project

Common enquiry briefs include heritage replacement, privacy panel, specified fire screen, existing roof glazing. Describe the intended use and the supporting construction so the supplier can assess the complete specification. Different applications can need different glass processing, fixings and installation details.

Separate appearance from ratings

Decorative Texture Glass Wired is an appearance product with no stated fire or impact rating.

Treat replacement as a specification

If an existing opening has a fire or impact requirement, match the documented performance rather than only the pattern.

What to include in a made-to-measure quote

Compare quotes using the same dimensions, quantities, finish, glass construction and installation scope. If you have a drawing or an existing specification, include its reference and identify which details still need advice.

• Wired appearance: A visual match does not establish a safety or fire classification.
• Fire requirement: Texture Glass Wired has no fire rating; a rated product needs compatible system evidence.
• Impact safety requirement: Wire mesh alone does not make glass impact safety rated.
• Exposed edges: Tell the supplier which edges remain visible after installation.

Cut-to-size dimensions, edges and fabrication

Measure the finished glass only when the fitting allowances and support details are known. Otherwise identify the opening or existing panel you measured and request a survey. Give each different size its own basket line, with its quantity and drawing reference.

Holes, cut-outs, shaped edges and interfaces with hardware should be settled before manufacture. The finished glass construction and any coatings must suit the intended environment. A screen preview or concept photograph cannot replace a sample, survey or product-specific installation drawing.

Supplier checks before manufacture

• Confirm the exact product’s fire and impact classifications; do not infer them from the wire.
• For fire protection, check the glass and the full framing assembly.

Requesting comparable glass quotes

Save the choices you know and ask for help with the rest. The quote basket records a specification request rather than placing a manufacturing order. A firm quote needs an agreed final build, dimensions, delivery arrangements and any installation or design work.

When comparing proposals, check that glass-only supply and supply with fitting cover the same scope. Ask who provides measurement, drawings, supports, compatible hardware, lifting access and finishing work. Keep the final approved specification with the order.
